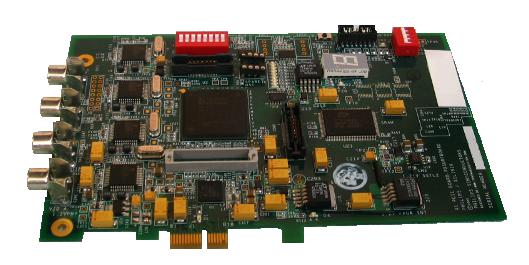

Eureka Technology provides a low cost PCI Express Evaluation board, complete with Windows device drivers, application software, and IP core evaluation license to allow users to quickly develop and evaluate their PCI Express solutions.

Key features include:

• Xilinx Spartan3-2000 FPGA.
  • Larger device allows for plenty of room for user logic design
  • Fast configuration and re-programmability adds flexibility to system design.
• Philips PX1011A PHY.
  • Off chip PHY with user friendly PXPIPE interface at 250Mhz.
• Mictor Connectors
  • Allows quick and simple debugging of internal signals using logic analyzers.
• Other hardware includes video input, 1MB SRAM, LED, dip switch, JTAG.
• Windows Device Drivers.
  • Development kit comes with Windows device driver, enables quick prototyping and evaluation of the PCI Express system, without having to develop drivers on your own.
• Application software and device driver
  • Sample device driver.
  • Application software in clear source code.
• Eureka PCI Express evaluation IP core and reference user logic design with memory controller and DMA.
• Documentations
  • User manual, schematic, FPGA pin assignment, bill of material.
• Low cost: $2,399
• To order please contact Eureka Technology at +1 650 960 3800 or email to info@eurekatech.com.
